Butterfly 4ca

200,00 €

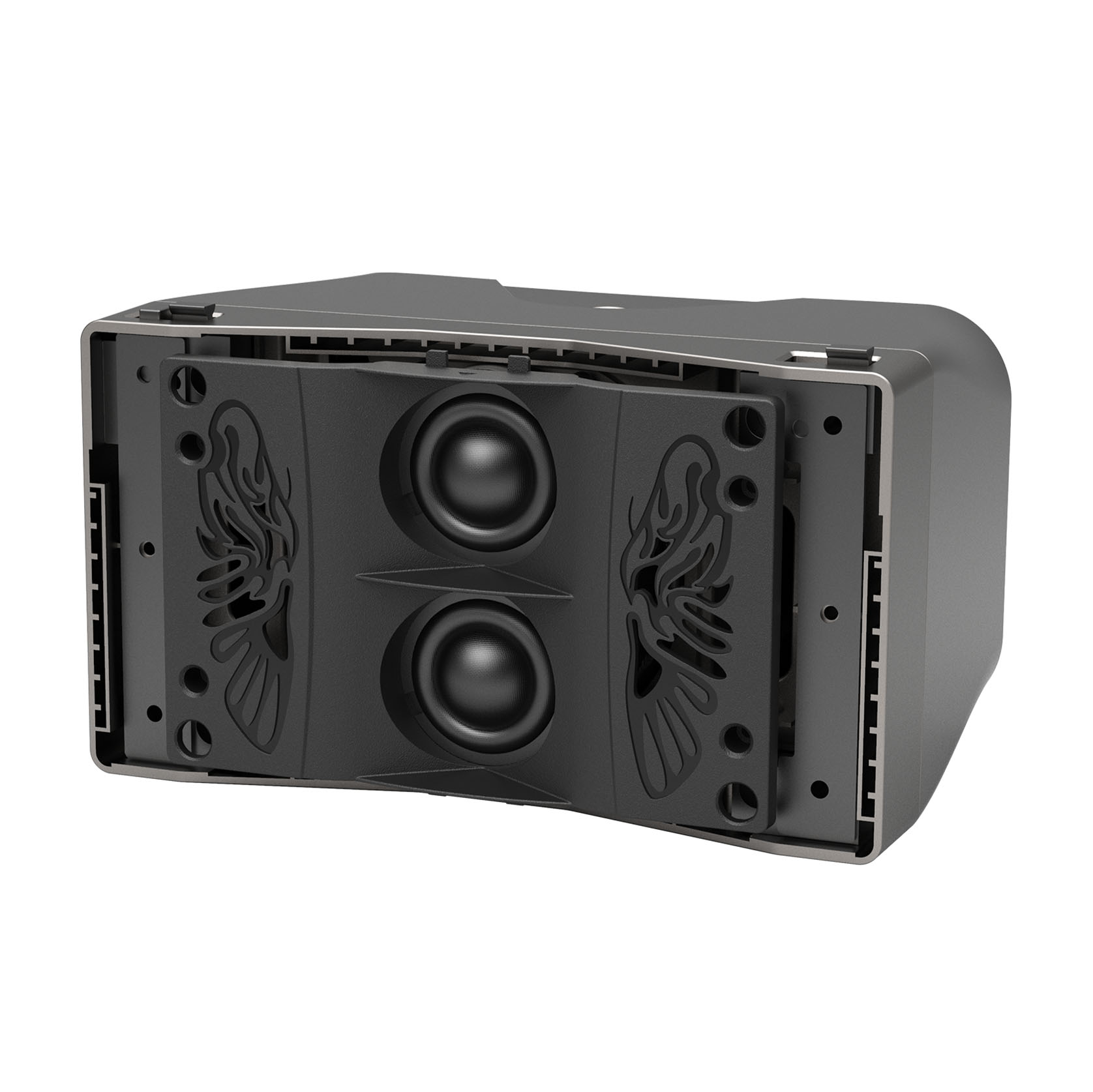

Butterfly 4ca consists of 1 pc 4” LF driver and 2 pcs soft dome tweeters. The HF adopts a unique T-eyeTM design, and the array layout is assembled in the center front of the speaker. The speaker has a wider frequency response and larger near-field coverage, and the sound is more delicate.

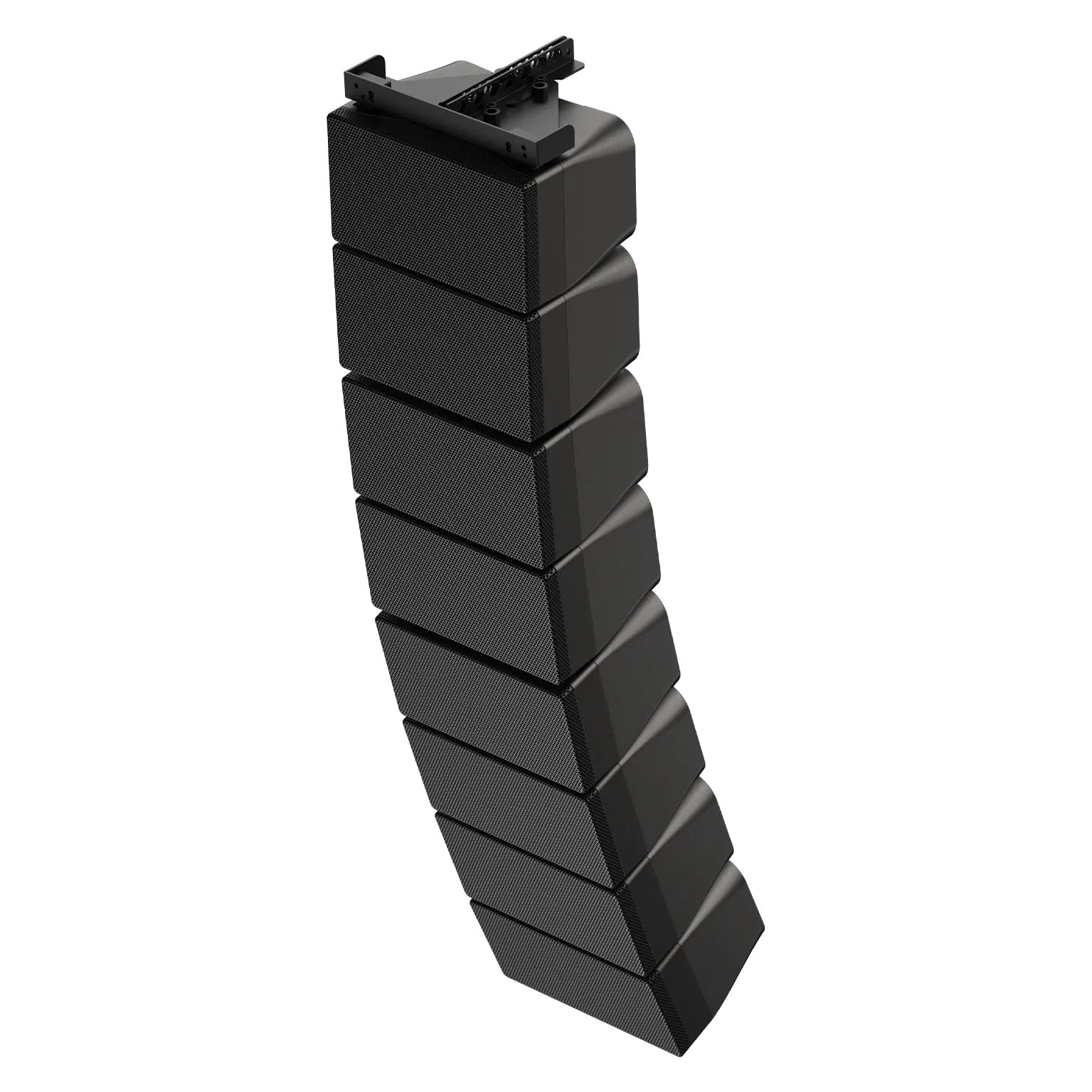

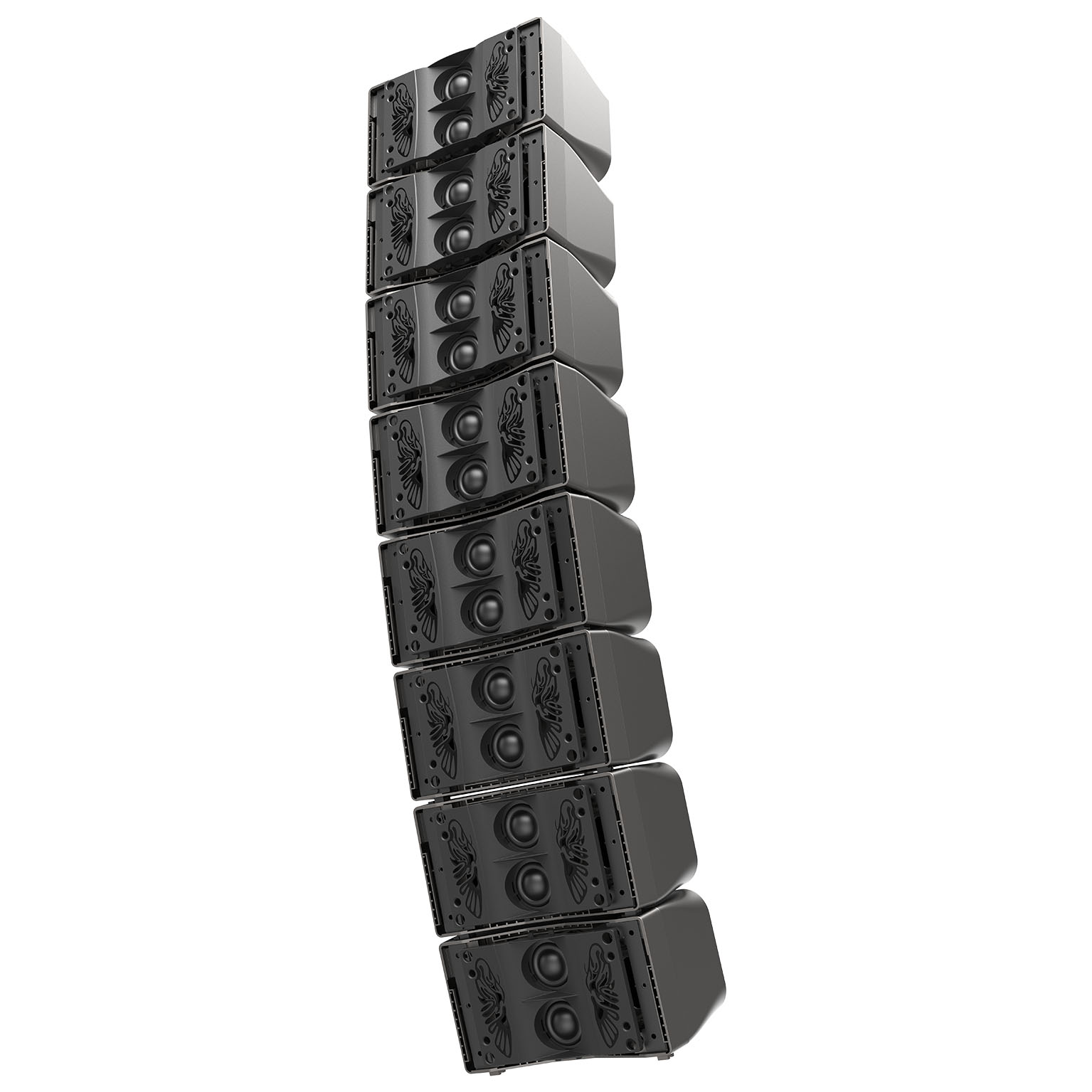

Butterfly 4ca adopts a modular design concept, which can be used individually or in combination with multiple speakers. It has good scalability and can flexibly adapt to various environments and occasions.

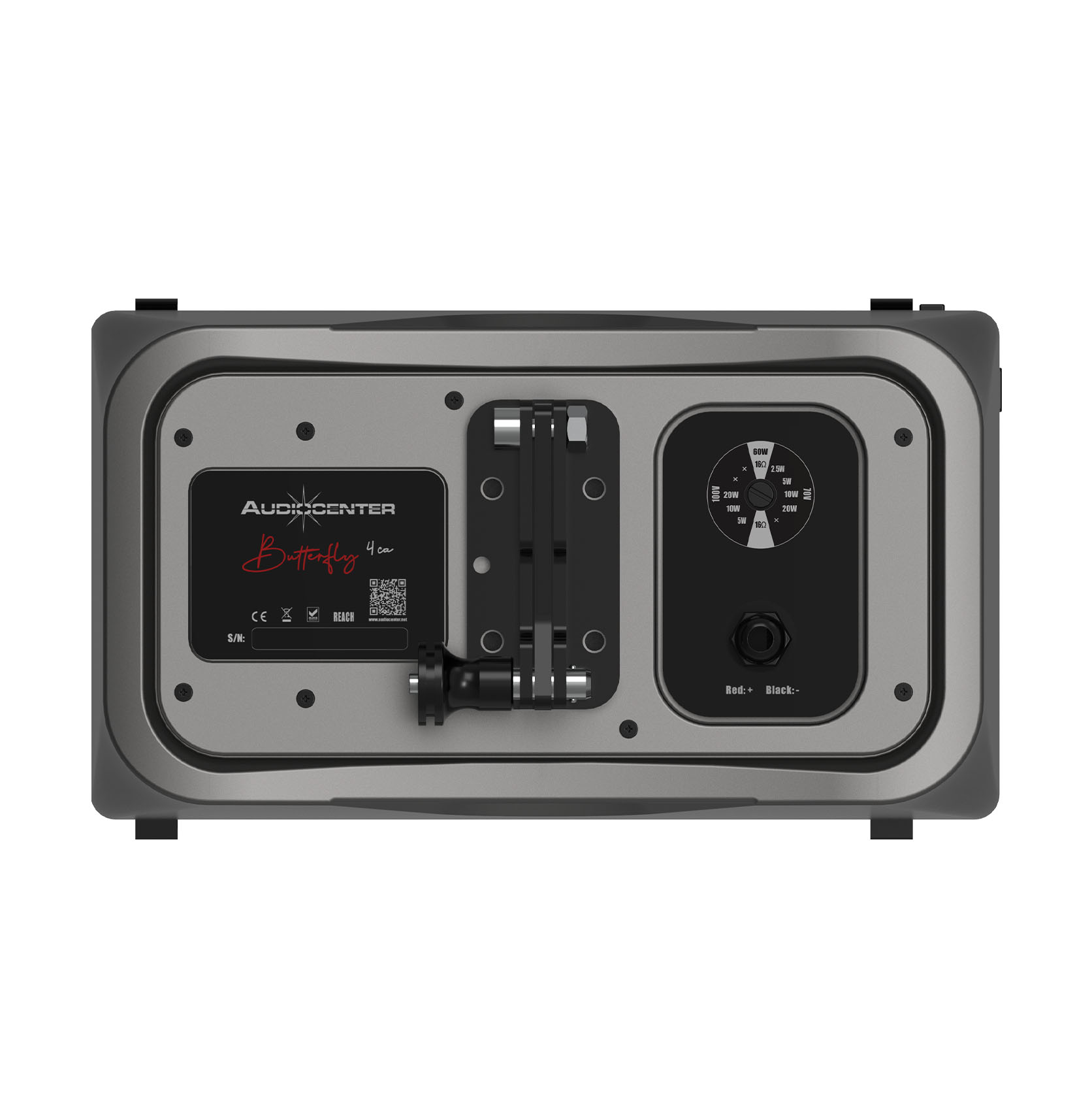

Butterfly is with both high Z (70V/100V) and low Z（16Ω）output.
70V: 2.5W/5W/10W/20W
100V:5W/10W/20W/x

Категория: Марка:

Описание

Features

  • Waterproof Rating IP54
  • Customized ProDriver
  • Smart Crossover Design
  • Durable ABS cabinet structure
  • High Z and Low Z
  • Unique Driver Protection Circuit
  • T-EYETM Treble Design
  • Extremely Simple Installation
  • Flexible and Multiple Applications

Specifications

Type Multipurpose Micro-Line Array Loudspeaker
Low Z Power 60W
High Z Power 70V:2.5W/5W/10W/20W

100V:5W/10W/20W/x
Frequency Response(-10dB) 100Hz-22kHz
Horizontal Coverage 100°
Vertical Coverage 20°
Maximum Calculated SPL/1M (Continuous/Peak) 111dB/117dB
HF Driver 2×1” driver
LF Driver 4” driver,1” voice coil
Impedance 16Ω(+1,-1)
Crossover Mode Passive Crossover
Input Connectors All-weather protective connector
Cabinet Material ABS plastic material
Angle adjustment 0°,4°
Cabinet Color Metal gray
Grille Iron mesh
Mesh Color Metal gray is standard and default color,

Contact Audiocenter for customization
Pole Mount M10
Temperature range -20℃~+50℃
Speaker Dimensions(W×H×D) 215×122×165mm
Carton Dimensions(W×H×D) 253×160×247mm
Net Weight 2.5kg
Shipping Weight 2.9kg
Technical Support and After-sales Service Global application support team,EASE GLL Files
